5 Bar Aluminium Checker Plate Cut to Size
At Metal Offcuts, we supply 5 bar aluminium checker plate cut to size in strong, lightweight Grade 5754 aluminium — ideal for ramps, vehicle flooring, trailers, stair treads and industrial applications.
Our aluminium checker plate has a raised 5-bar tread pattern for improved grip, with good corrosion resistance for indoor, workshop, vehicle and many outdoor applications. Order standard sizes online or request a quote for exact dimensions, shaped panels or fabricated parts.
Order 5 bar aluminium checker plate cut to size with free cutting, fast UK delivery and no minimum order — perfect for ramps, vehicle flooring, trailers, stair treads and heavy-duty industrial use.
- Material: Grade 5754 aluminium tread plate
- Pattern: raised 5-bar anti-slip tread
- Thicknesses: 1.5mm, 2mm, 3mm and 4.5mm, excluding raised pattern
- Sheet sizes: custom sizes up to 3000mm × 1500mm
- Services: guillotine cutting, laser profiling, folding, welding and fabrication
For a broader guide to grades, finishes, uses and thicknesses, read our Aluminium Checker Plate Guide.
What is Aluminium Checker Plate?
Aluminium checker plate, also known as chequer plate or tread plate, is a sheet of aluminium with a raised 5-bar pattern designed to improve grip and reduce slipping. It is commonly used for flooring, ramps, vehicle panels and industrial applications due to its strength, low weight and corrosion resistance.
If you do not need a raised anti-slip pattern, a plain aluminium sheet cut to size (Grade 1050A) may be more suitable for fabrication, signage, cladding and general workshop use.
Can Aluminium Checker Plate Be Cut to Size?
Yes — aluminium checker plate can be cut to size using guillotine or laser cutting. At Metal Offcuts, we supply 5 bar aluminium checker plate cut to size with no minimum order, including custom shapes from DXF, DWG or PDF files.
For more detail on grades, finishes and applications, see our Aluminium Checker Plate Guide.
Aluminium Checker Plate Thickness Options
Choosing the right checker plate thickness depends on the intended use, loading and level of wear. Our aluminium checker plate is measured by the base thickness, excluding the raised 5-bar pattern.
| Thickness | Typical Uses | Cut to Size? |
|---|---|---|
| 1.5mm | Decorative panels, light wall protection, craft and display use | Yes |
| 2.0mm | General flooring, kick plates, workshop panels and light ramps | Yes |
| 3.0mm | Vehicle flooring, trailers, access ramps and industrial use | Yes |
| 4.5mm | Heavy-duty flooring, commercial ramps and high-wear applications | Yes |
If you are unsure which thickness is best for your project, send us your dimensions and intended use and we can advise before cutting.
Our Cut-to-Size Checker Plate Service
When you order from Metal Offcuts, your aluminium checker plate can be prepared to suit your project from the start. We can supply small panels, full sheets, repeat batches or shaped parts from your drawing.
- Exact dimensions: straight guillotine cutting or laser cutting up to 3000mm × 1500mm
- Custom shapes: DXF, DWG, PDF or sketch-based cutting available
- Fabrication: folding, welding and finishing available where required
- Fast turnaround: many standard cut-to-size orders are dispatched within 1–2 working days
- No minimum order: suitable for one-off panels, repairs, prototypes and small batches
Need shaping or folding? Explore our sheet metal fabrication services for aluminium and other metals.
Why Choose Grade 5754 Aluminium Checker Plate?
Our 5-bar aluminium checker plate is manufactured from 5754 aluminium, a strong and corrosion-resistant grade widely used for flooring, vehicles, marine environments and general fabrication.
- Strong but lightweight: easier to handle than steel tread plate
- Corrosion resistant: suitable for many outdoor, vehicle and workshop uses
- Raised 5-bar pattern: provides improved surface grip
- Easy to fabricate: can be cut, folded and shaped for custom projects
- Recyclable: aluminium is fully recyclable
Learn more about aluminium grades in our aluminium sheet grades guide.
Common Applications of Aluminium Checker Plate
Ramps, Steps & Stair Treads
Aluminium checker plate is often used for access ramps, steps, stair treads and loading areas where a durable raised tread surface is required.
Vehicle Flooring & Trailers
Grade 5754 tread plate is popular for vans, trailers, pickup beds, horseboxes, toolboxes and vehicle protection panels because it combines strength, low weight and corrosion resistance.
Industrial Flooring & Workshop Use
Checker plate is widely used for walkways, garage floors, machine areas, work platforms and workshop panels where a tough, practical surface is needed.
Wall Protection & Kick Plates
Cut-to-size checker plate can be used as wall protection, door kick plates, corner guards, counter protection and hard-wearing surface covers in commercial and industrial settings.
Decorative & Interior Projects
The raised tread pattern can also be used for furniture, shopfitting, counters, displays and industrial-style interior features.
Checker Plate Fabrication Services
Alongside straight cutting, we can provide additional fabrication services for aluminium checker plate and other sheet metals.

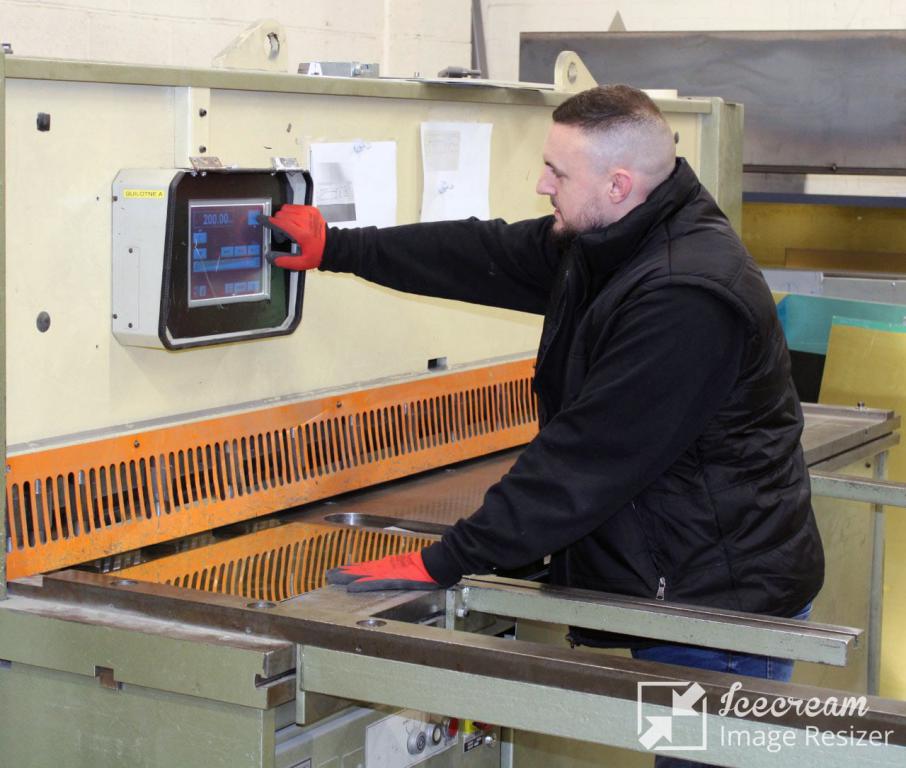

- Guillotining: straight, accurate cuts up to 3 metres long
- Laser profiling: custom shapes, holes and profiles from DXF, DWG, PDF or sketch
- Press braking: folding and bending up to 3 metres
- TIG and MIG welding: fabrication support for suitable projects
Send your design, sketch or cutting list and we’ll provide a custom quote.
Product Information
- Product: 5 bar aluminium checker plate / chequer plate / tread plate
- Material: Grade 5754 aluminium
- Finish: natural mill finish with raised 5-bar tread pattern
- Thicknesses: 1.5mm, 2mm, 3mm and 4.5mm, excluding raised pattern
- Maximum sheet size: up to 3000mm × 1500mm
- Cutting: custom sizes, straight cuts and shaped profiles available
- Delivery: fast UK delivery or same-day collection by arrangement
Cut in Liverpool, UK — Made in Britain certified.
Order Aluminium Checker Plate Cut to Size
Order 5 bar aluminium checker plate cut to size online, or request a custom quote for shaped panels, fabrication or larger quantities.
Phone: 0151 526 4777
Email: sales@metaloffcuts.co.uk
Online form: fill out our enquiry form
Need more aluminium options? View our full aluminium sheet products or visit our parent company Metal Sheets Ltd for larger sheet orders.
FAQs – Aluminium Checker Plate Cut to Size
What is the difference between aluminium chequer plate and checker plate?
There is no material difference. “Chequer plate” is the common British spelling, while “checker plate” is also widely used online. Both refer to aluminium tread plate with a raised anti-slip pattern.
What is the difference between checker plate and tread plate?
Checker plate and tread plate are interchangeable terms. Both describe sheet metal with a raised pattern designed to improve grip.
Can you cut aluminium checker plate to my exact size?
Yes — we supply aluminium checker plate cut to size using guillotine or laser cutting. We can cut straight panels or shaped parts from DXF, DWG, PDF files or sketches.
What thicknesses of aluminium checker plate are available?
We stock 1.5mm, 2mm, 3mm and 4.5mm aluminium checker plate. These measurements refer to the base thickness and exclude the raised tread pattern.
Is aluminium checker plate suitable for outdoor use?
Yes — Grade 5754 aluminium has good corrosion resistance and is suitable for many outdoor, vehicle, ramp, trailer and workshop applications.
Can aluminium checker plate be folded or fabricated?
Yes — we can provide folding, shaped cutting and fabrication services for aluminium checker plate, depending on the design and thickness required.
How quickly can you cut and deliver?
Many standard cut-to-size aluminium checker plate orders are completed and dispatched within 1–2 working days. Larger, shaped or fabricated orders may take longer depending on the work required.
